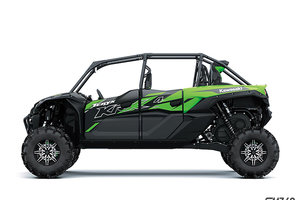

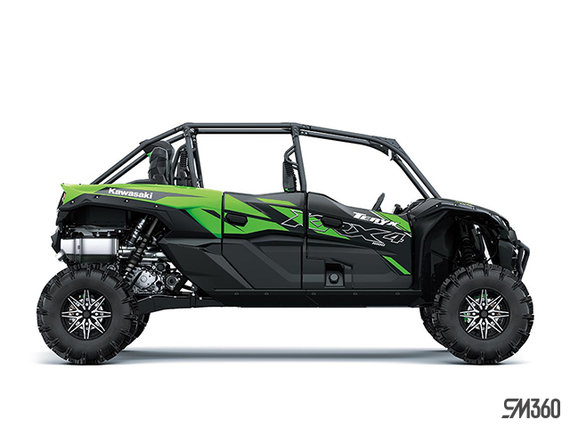

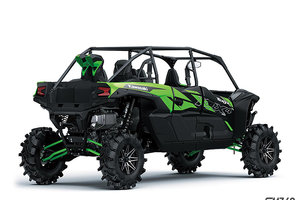

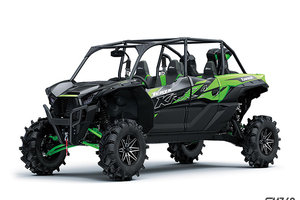

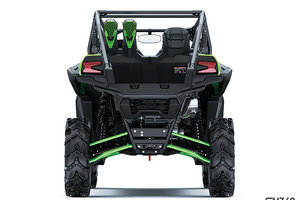

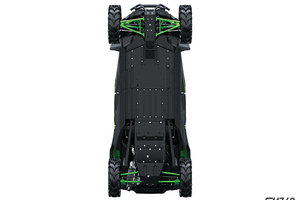

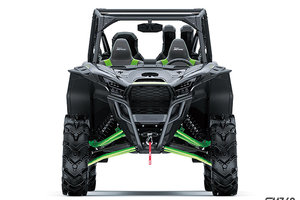

2025 Kawasaki TERYX KRX4 1000 LIFTED EDITION
Exterior Color
Lime Green / Super Black
LEGEND:
S = Series O = Optional
POWER
S
Starting - Electric
S
Ignition - Digital
S
Lubrication - Forced lubrication, wet sump
S
Final Drive - 2WD/4WD, shaft
S
Transmission - Dual-range (high/low) CVT with centrifugal clutch and reverse
S
Engine - 999cc, liquid-cooled, 4-stroke, DOHC 4-valve-per-cylinder parallel twin
S
Bore x Stroke - 92.0 x 75.1 mm
S
Compression Ratio - 11.5:1
S
Fuel System - Fuel injection: ø50 mm x 2
DETAILS
S
Warranty - 6 months
S
Kawasaki Protection Plus - 12 / 24 / 36 / 48 months
S
Fuel Capacity - 40 litres
S
Cargo Bed Dimensions (LxWxH): 370 x 840 x 230 mm (14.6 x 33.1 x 9.1 in)
S
Cargo Bed Capacity: 159 kg (351 lb)
S
Seating Capacity - 4
S
Lighting - 2x LED headlights
S
Wheelbase - 3,195 mm (125.8 in)
S
Tread (F/R) - 1,505 mm (59.3 in) / 1,480 mm (58.3 in)
S
Instrumentation - Multi-function digital meter with bar-style tachometer (2 display options), digital speedometer, bar-style fuel gauge, gear indicator (L, H, N, R), Power Mode, driving mode (2WD/4WD/4WD+Diff Lock) indicator, Economical Riding Indicator, clock, odometer, dual trip meters, hour meter, water temperature, digital battery gauge, bar-style CVT temperature gauge, seatbelt warning lamp, oil warning lamp, engine check lamp, water temperature warning lamp, neutral indicator lamp, reverse indicator lamp, parking indicator lamp, EPS warning lamp, CVT belt warning lamp, low-battery warning lamp
S
Dimensions (L x W x H) - 4,065 x 1,730 x 1,945 mm (160.0 x 68.1 x 76.6 in)
S
Road Clearance - 360/375 mm (standard/max preload) (14.2/14.8 in (standard/max preload))
S
Seat Height - 820 (F) / 840 (R) mm (32.3 (F) / 33.1 (R) in)
S
Curb Mass - 1,012 kg (2,231 lb)
S
Turning Radius - 7.3 m (24.0 ft)
S
Vehicle Load Capacity - 454 kg (1,000 lb)
TECHNOLOGY
S
Chassis Management Technology - ERGO-FIT
S
Engine Management Technology - Economical Riding Indicator, Power modes
CAPABILITY
S
Frame - Ladder type, tubular steel
S
Steering - Rack and pinion with Electric Power Steering
S
Steering Angle (L/R) - 34° (IN) / 29° (OUT), 34° (IN) / 29° (OUT)
S
Front Brake - Dual ø258 mm discs with twin-piston (ø32 mm x2) calipers
S
Rear Brake - Dual ø258 mm discs with single-piston (ø38 mm x1) calipers
S
Parking Brake - Auto-adjust mechanical disc
S
Front Suspension / Wheel Travel - Double wishbone, FOX 2.5 LSC Piggyback Shocks, fully adjustable preload, and 24-position adjustable compression damping / 472 mm (18.6 in)
S
Rear Suspension / Wheel Travel - 4-link trailing arm rear suspension, FOX 2.5 LSC Piggyback Shocks, fully adjustable preload, and 24-position adjustable compression damping / 536 mm (21.1 in)
S
Rake / Trail - 10.0° / 67 mm
S
Front Tire - ITP Cryptid 32 x 10.00R15 6PR
S
Rear Tire - ITP Cryptid 32 x 10.00R15 6PR
* Calculated price is based on the manufacturer's suggested retail price. Shipping and preparation included, taxes extra. The rebate and purchase price displayed may vary depending on whether the vehicle is leased, financed, or paid in cash. While every reasonable effort is made to ensure the accuracy of this information, we are not responsible for any errors or omissions contained on these pages. Prices, payments and rates are subject to change without notice, please verify all information and pricing with a sales representative or ask online.
