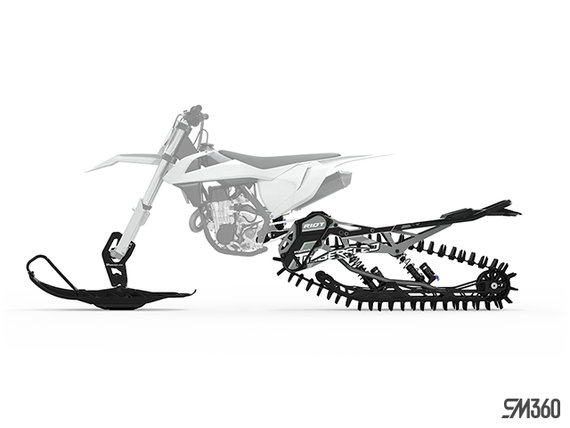

2024 Timbersled RIOT 120 S Premium

Exterior Color

Black
LEGEND:
S = Series O = Optional
CHASSIS
S
Snow Flap : Included
S
Bumper : Included
S
Side Panel Color : Silver
S
Graphics : Black / Silver
S
Frame and bumper color : Black
S
Chassis : RIOT
Dimensions
S
Estimated Dry Weight - Front (lbs/kg) : 16.0 / 7.25
S
Overall Length : 65.5 in (166.37 mm)
S
Estimated Dry Weight - Rear (lbs/kg) : 112 / 50,8
FEATURES
S
Storage : Accessory
S
Fuel Storage : Accessory (2.9 gal / 11 L)
S
Install Kits : ARO/RIOT Fixed or TSS
Drivetrain
S
Drivetrain Type : Chain Drive
S
Chain Case / Belt Drive : 52-520 X-Ring
S
Engine Chain : 520 X-Ring Chain
S
Brakes : Timbersled Pre-bleed
S
Driver : 2.86 pitch 6 tooth
S
Driveshaft : Standard
S
Case Gearing : 18:17
S
Track Dimensions (W x L x Lug inches) : 11.5 x 120 x 2.5
S
Track Name / Feature : Traverse 2.5 in LWT

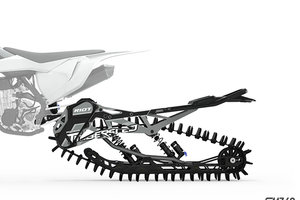

Rear Suspension
S
Shocks : FOX QS3
S
Hyfax : Lightweight
S
Rail Color : Black
S
Suspension Arm Color : Silver
S
Rear Travel - Fixed Fit Kit (in./cm.) : 10.0 / 25.4
S
Rear Travel - TSS Fit Kit (in./cm.) : 18.0 / 45.7
S
Suspension Type : RIOT

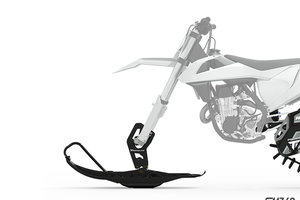

Front Suspension
S
Ski Hoop Color : Black
S
Spindle Color : Black
S
Spindle : Lightweight S
S
Ski Type : Traverse
