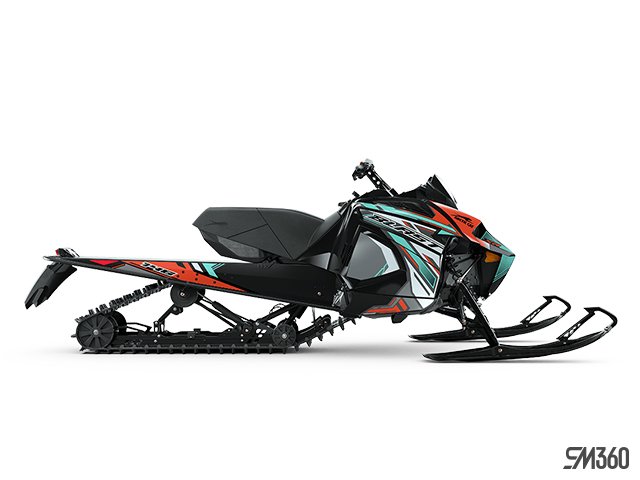

2024 Arctic Cat BLAST XR 4000

Standard

• Cooling - Liquid
• Bore x Stroke - 85 x 70 mm
• Lubrication - Electronic Injection
• Ignition - Digitally Controlled CDI
• Engine Starter Output - 270 W @ 3000 RPM
• Oil System Capacity - 3.25 qt.
• Minimum Octane - 91
• Fuel Delivery - Electronic Fuel Injected (EFI)
• Fuel Capacity - 11.7 gal.
• Cylinders - 1
• Displacement - 397cc
• Exhaust - APV with Tuned Pipe, Pipe Sensor, Manifold and Stainless Steel Muffler
• Coolant System Capacity - 5.0 qt.
• Engine Type - 4000, 2-Stroke

Standard

• Track Width - 15 in.
• Pitch - 2.86 in.
• Track Type - Cobra
• Track Length - 146 in.
• Runner Type - Single Runner
• Overall Chassis Length - 128 in.
• Overall Chassis Width - 44-45 in.
• Lug - 1.60 in
• Ski Stance - 37.5-38.5 in. - Adjustable
• Ski Type/Width - Trail - 6 in
• Overall Chassis Height - 45 in.

Standard

• Front Suspension - Arctic Mountain Suspension (AMS)
• Ski Shocks - Hydraulic Twin Tube
• Front Track Shock - Hydraulic Twin Tube
• Rear Track Shock - Hydraulic Twin Tube
• Front Travel - 7.2 in.
• Rear Travel - 12.5. in.
• Rear Suspension - Slide-Rail, Dual Shock and Adjustable Torsion Springs

Standard

• Heat Exchanger - Front/Long Tunnel
• Handlebars - Hooked
• Seating - Mountain
• Lighting - Halogen 1-Bulb
• Windshield - 4 in. Low-Height
• Starter - Turnkey Electric Start
• Color - Dynamic Charcoal/Sunset Orange
• Standard Accessories - Hand & Thumb Warmers, Brake Disc, Standard Steering, Tether Switch

Standard

• Gearing - 19/50
• Reverse - Push-Button Engine
• Drive System - Arctic Drive System
• Clutch Calibration - 0-5,000 ft
• Chain Pitch - 90
• Drive Clutch - CVTech Trailbloc
• Driven Clutch - CVTech Invance
• Brakes - Stealth Hydraulic Master Cylinder w/ Lightweight Caliper
• Track Drive Sprocket - 8 Tooth, 2.86 Pitch, Involute

Standard

• Speedometer - Digital
• Tachometer - Digital
• Odometer - Digital
• Fuel - Digital
• Oil - Indicator Light
• Hours - Digital
• Type of Gauge - Powersport
• Coolant - Indicator Light
