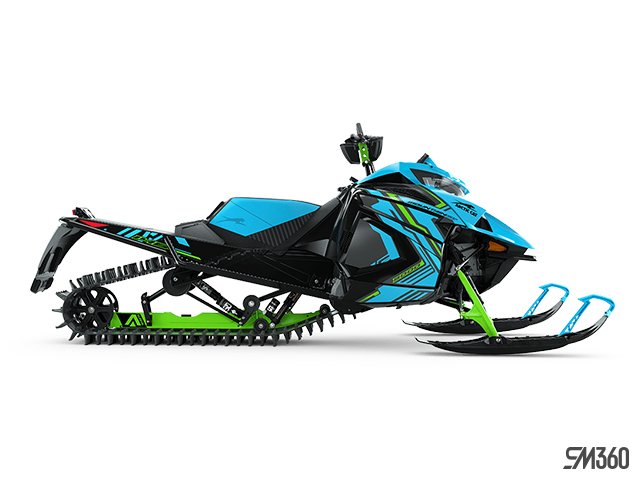

2024 Arctic Cat M MOUNTAIN CAT ALPHA ONE 8000 146"/2.60" Manual

Standard

• Displacement - 794cc
• Cooling - Liquid
• Cylinders - 2
• Bore x Stroke - 85 x 70 mm
• Lubrication - Electronic Injection
• Ignition - Digitally Controlled CDI
• Engine Starter Output - 270 W @ 3000 RPM
• Exhaust - APV with Tuned Pipe, Pipe Sensor and Stainless Steel Manifold and Muffler
• Fuel Capacity - 10.4 or 11.7 gal. (varies by model)
• Oil System Capacity - 3.25 qt.
• Minimum Octane - 91
• Fuel Delivery - Next Generation C-TEC2
• Engine Type - 8000, 2-Stroke
• Coolant System Capacity - 5,5 qt.

Standard

• Overall Chassis Width - 42.5-44.5 in.
• Overall Chassis Height - 50 in.
• Track Type - PowerClaw
• Track Width - 15 in.
• Ski Stance - 35.5-37.5 in. - Adjustable
• Runner Type - Single Runner with Carbide
• Ski Type/Width - G2 ProClimb - 7 in.
• Track Length - 146 in
• Lug - 2.60 in.
• Pitch - 2.86 in. or 3.50 in.
• Overall Chassis Length - 128 in. or 132 in. or 137 in.

Standard

• Front Suspension - Arctic Mountain Suspension (AMS)
• Sway Bar - N/A
• Front Travel - 7 in.
• Rear Suspension - ALPHA-ONE Rear Suspension
• Ski Shocks - FOX FLOAT 3 QS3
• Front Track Shock - FOX FLOAT 3 QS3
• Rear Travel - 13 in. or 14 in. or 15 in.
• Rear Track Shock - FOX FLOAT 3 QSL

Standard

• Heat Exchanger - Front/Short Tunnel
• Lighting - LED with Accent Light
• Windshield - 1 in. Mountain Height
• Handlebars - Hooked with Grab Handle
• Starter - Manual
• Standard Accessories - 12v outlet, sport front bumper, goggle holder, handlebar bag, hand & thumb warmers, front/short tunnel heat exchanger, ice scratchers, lightweight mountain brake disc, vertical steering, mountain storage bag, tether switch
• Color - Skye Blue
• Seating - Mountain or Lightweight Mountain

Standard

• Drive System - Arctic Mountain Drive System
• Clutch Calibration - 6,000-8,000 ft.
• Gearing - 19/50
• Chain Pitch - 96
• Reverse - Push-Button Engine
• Brakes - Stealth Hydraulic Master Cylinder with Lightweight Caliper
• Drive Clutch - ADAPT
• Driven Clutch - ADAPT
• Track Drive Sprocket -9 Tooth, 2.86 Pitch, Exvolute or 7 Tooth, 3.50 Pitch, Exvolute

Standard

• Type of Gauge - Deluxe Digital
• Speedometer - Digital
• Tachometer - Digital
• Odometer - Digital
• Fuel - Digital
• Oil - Indicator Light
• Coolant - Digital/Indicator Light
• Hours - Digital
• Altimeter - Digital
• Clock - Digital (Electric Start Only)
• Battery Voltage - Digital (Electric Start Only)
