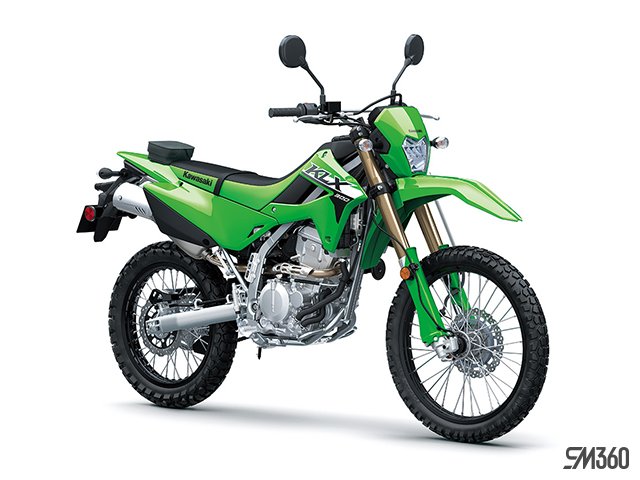

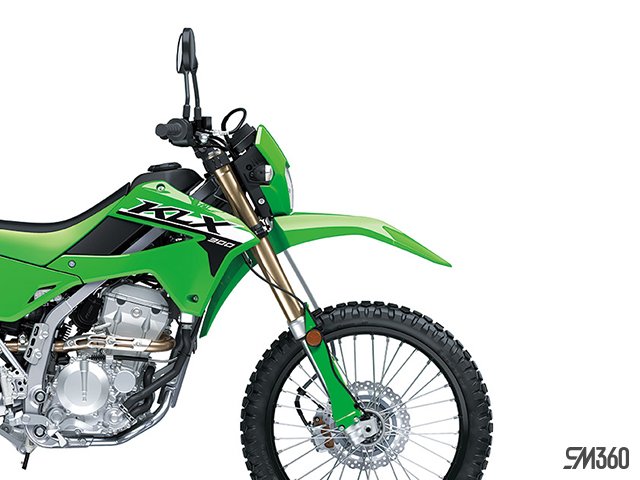

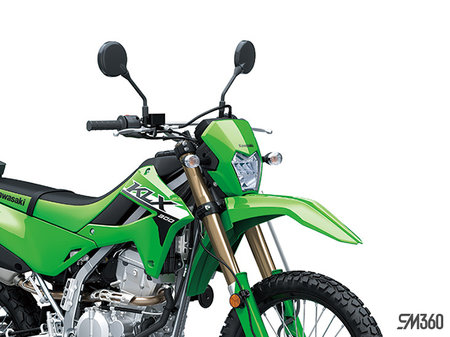

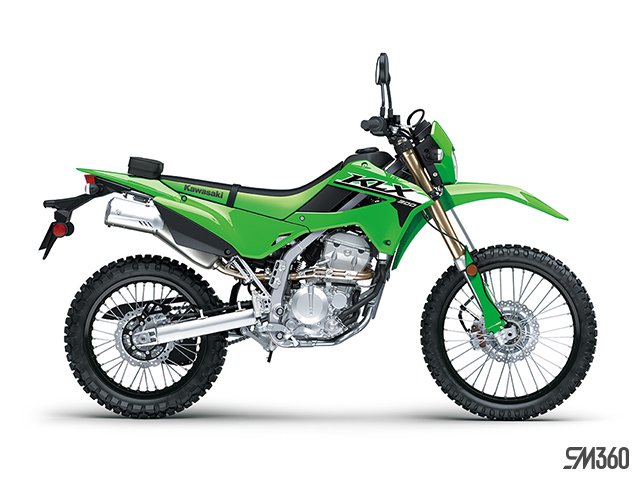

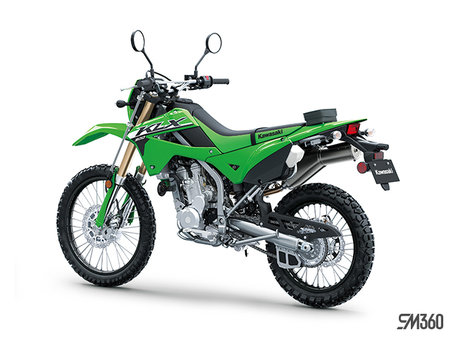

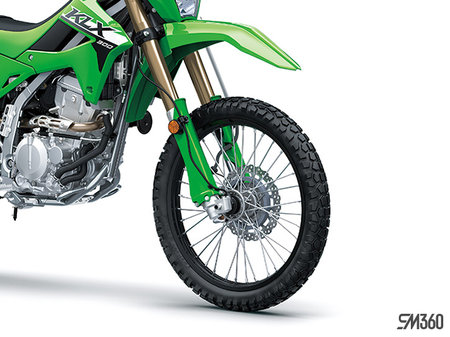

2024 Kawasaki KLX300

Standard

• Steering Angle (L/R) - 41° / 41°
• Frame - Perimeter, high-tensile steel
• Rear Brake - ø240 mm petal disc with single-piston caliper
• Front Suspension / Wheel Travel - ø43 mm inverted fork with adjustable compression damping / 255 mm (10.0 in)
• Rear Suspension / Wheel Travel - Uni Trak, gas-charged shock with piggyback reservoir, adjustable compression and rebound damping, and adjustable spring preload / 230 mm (9.1 in)
• Rake / Trail - 26.7° / 106 mm
• Front Tire - 3.00-21 51P
• Rear Tire - 4.60-18 63P
• Front Brake - ø250 mm petal disc with dual-piston caliper

Standard

• Starting - Electric
• Lubrication - Forced lubrication , wet sump
• Clutch - Wet multi-disc, manual
• Final Drive - Chain
• Transmission - 6-speed, return
• Engine - 292cc, liquid-cooled, 4-stroke, DOHC 4-valve single
• Bore x Stroke - 78.0 x 61.2 mm
• Compression Ratio - 11.1:1
• Fuel System - Fuel injection: ø34 mm x 1
• Ignition - Digital CDI

Standard

• Kawasaki Protection Plus - 12 / 24 / 36 / 48 months
• Warranty - 12 months
• Road Clearance - 275 mm (10.8 in)
• Seat Height - 895 mm (35.2 in)
• Wheelbase - 1,440 mm (56.7 in)
• Curb Mass - 137 kg (302 lb)
• Dimensions (L x W x H) - 2,175 x 820 x 1,185 mm (85.6 x 32.3 x 46.7 in)
• Fuel Capacity - 7,5 L
• Instrumentation - LCD screen with digital speedometer, digital bar-type tachometer, clock, dual trip meters, and a range of warning/indicator lamps
