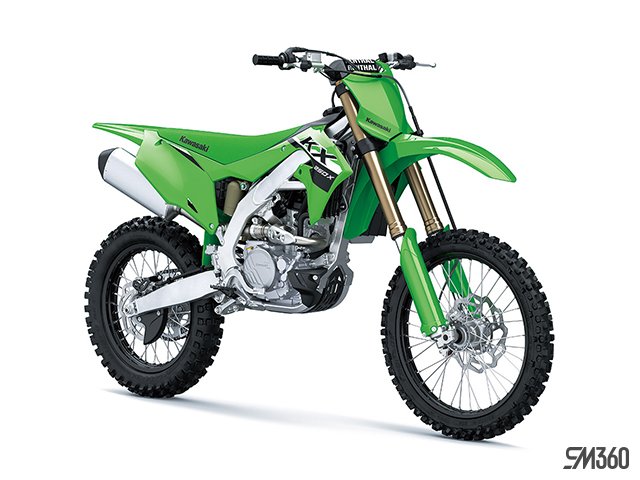

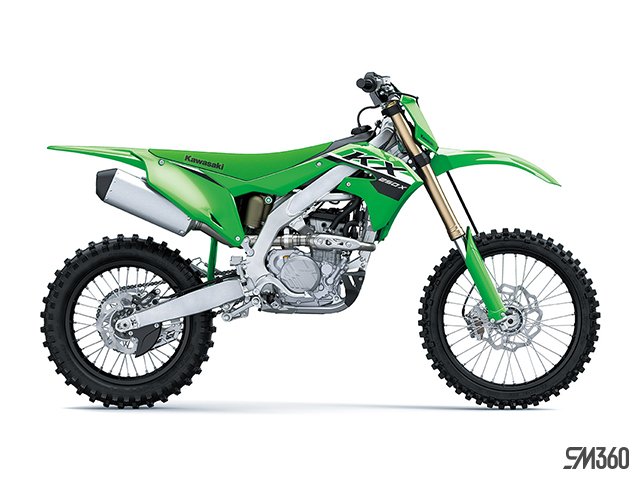

2024 Kawasaki KX250X

Standard

• Starting - Electric
• Final Drive - Chain
• Ignition - Digital-CDI
• Bore x Stroke - 78.0 x 52.2 mm
• Compression Ratio - 14.1:1
• Fuel System - Fuel injection: ø44 mm x 1, with dual injectors
• Lubrication - Forced lubrication, semi-dry sump
• Clutch: Wet multi-disc, manual
• Engine - 249cc, liquid-cooled, 4-stroke, DOHC 4-valve single
• Transmission -5-speed, return

Standard

• Road Clearance - 330 mm (13.0 in)
• Fuel Capacity - 6.2 litres
• Dimensions (L x W x H) - 2,170 x 820 x 1,260 mm (85.4 x 32.3 x 49.6 in)
• Wheelbase - 1,480 mm (58.3 in)
• Seat Height - 945 mm (37.2 in)
• Curb Mass - 109.0 kg (240 lb)
• Mass Without Fuel: 104.4 kg (230 lb)

Standard

• Chassis Management Technology: ERGO-FIT
• Engine Management Technology: Dual injectors, Launch control mode

Standard

• Rear Brake: ø240 mm petal disc with single-piston caliper
• Front Tire - 80/100-21 51M
• Frame - Perimeter, aluminum
• Steering Angle (L/R) - 42° / 42°
• Front Brake: Semi-floating ø270 mm petal disc with dual-piston caliper
• Front Suspension / Wheel Travel - ø48 mm inverted fork with adjustable compression and rebound damping / 314 mm (12.4 in))
• Rear Suspension / Wheel Travel -New Uni Trak with adjustable dual-range (high/low-speed) compression damping, adjustable rebound damping and adjustable spring preload / 316 mm (12.4 in)
• Rake / Trail - 27.8° / 123 mm
• Rear Tire - 110/100-18 64M
