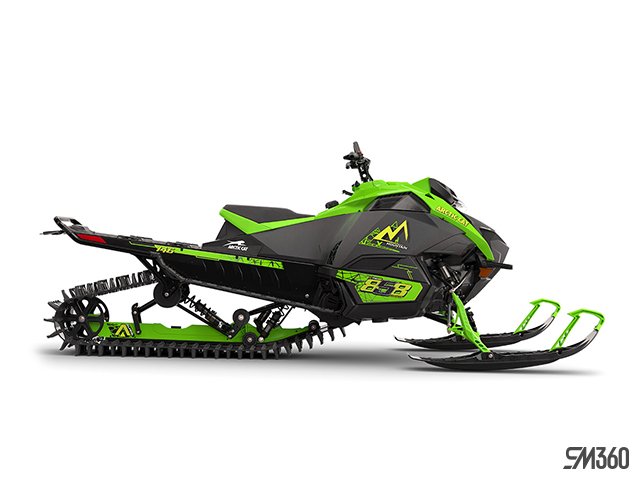

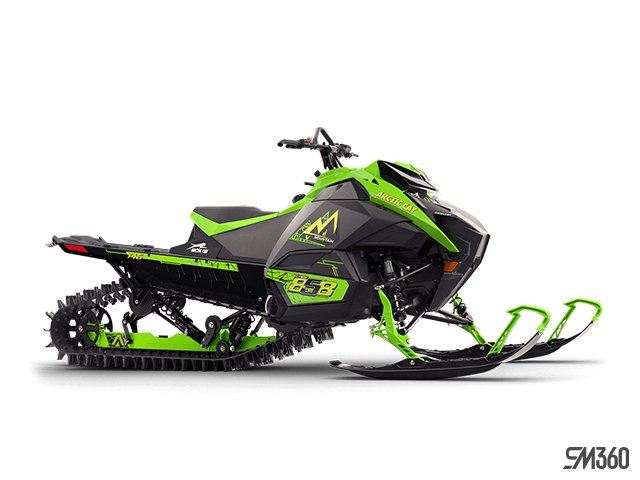

2025 Arctic Cat M ALPHA ONE M 858 ALPHA ONE SNO PRO

Standard

• Cylinders - 2
• Lubrication - Electronic Injection
• Minimum Octane - 91
• Engine Type - 858, 2-Stroke
• Exhaust -APV IV w/ FullStainless SteelExhaust & EGTSensors
• Fuel Capacity - 10.4 gal
• Displacement - 858cc
• Bore x Stroke - 85 x 75.6 mm
• Ignition - Digitally ControlledCDI
• Engine Stator Output - 270W @ 3000 RPM
• Fuel Delivery - Next Gen. C-TEC2
• Oil System Capacity - 3.0 qt
• Coolant System Capacity - 4.2 qt

Standard

• Track Type - Power Claw
• Overall Chassis Length - 126.5 in or 131 in
• Overall Chassis Width - 42-44 in
• Overall Chassis Height - 50 in.
• Track Width - 15 in.
• Track Length - 146 in, 154 in, or 165 in
• Lug - 2.60 in or 3.00 in
• Pitch - 2.86 in. or 3.50 in.
• Ski Stance - 35-37 in. Adjustable
• Ski Type/Width - G2 ProClimb- 7 in.
• Runner Type - Single Runner w/ Carbide

Standard

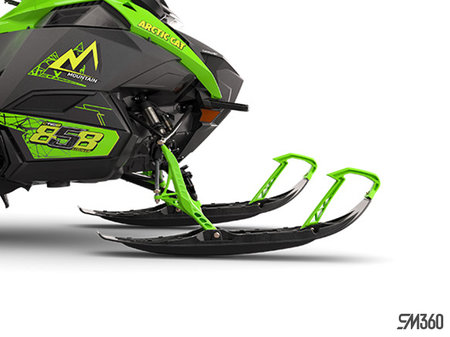

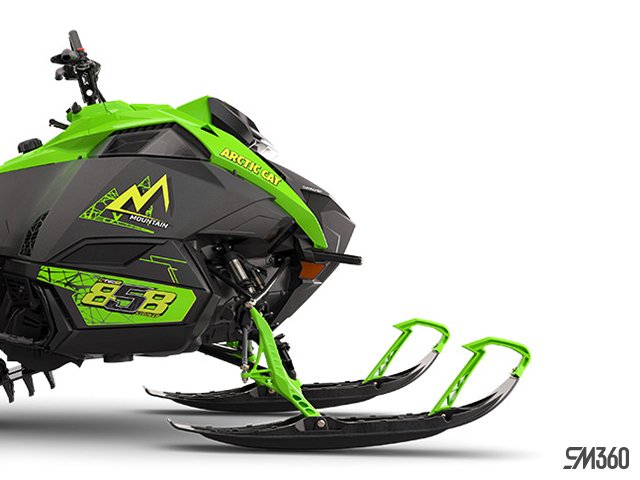

• Front Suspension - Arctic Wishbone Suspension 36
• Ski Shocks - AC5S
• Front Travel - 7.6 in.

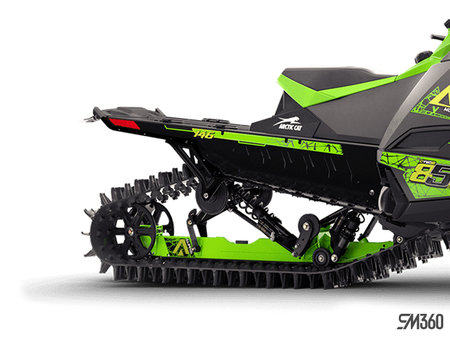

• Rear Suspension - ALPHA ONE Rear Suspension
• Front Track Shock - AC5S
• Rear Track Shock -AC5S
• Rear Travel - 13.5 in, 14.5 in, or 15.5 in

Standard

• Seating - Mountain
• Heat Exchanger - Front/ Short Tunnel
• Starter - Manual or Push-Button Electric Start
• Handlebars - Hooked w/ Grab Handle
• Lighting - LED
• Standard Accessories - 12V Outlet, SportFront Bumper,Integrated GoggleHolder, ATACH RearStorage, Hand &Thumb Warmers, IceScratchers, StandardBrake Disc, VerticalSteering, TetherSwitch, Visor Plug-In

Standard

• Brakes - Stealth Hydraulic Master Cylinder
• Gearing - 24/63
• Drive Clutch - ADAPT
• Driven Clutch - ADAPT
• Drive System - AC M Belt Drive
• Clutch Calibration - 6,000-8,000 ft.
• Chain Pitch - Belt
• Track Drive Sprocket - 9 Tooth, 2.86 Pitch, Exvolute or 7 Tooth, 3.50 Pitch, Exvolute
• Reverse - Push-Button Engine

Standard

• Speedometer - Digital
• Tachometer - Digital
• Odometer - Digital
• Fuel - Digital
• Hours - Digital
• Type of Gauge - Sport
• Oil - LCD Icon
• Coolant - Digital Bar Graph
