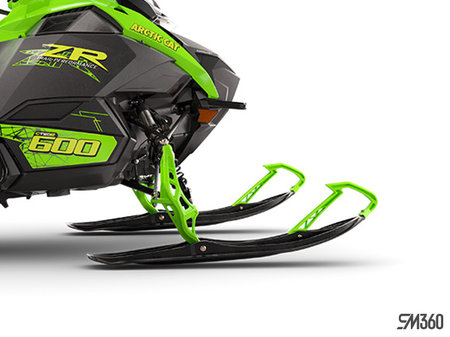

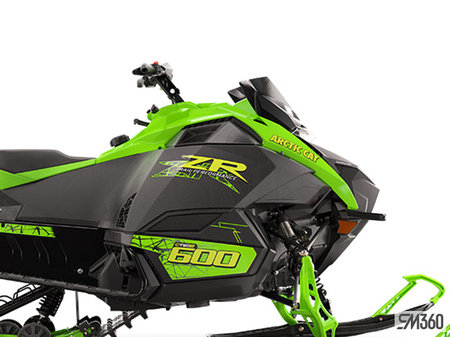

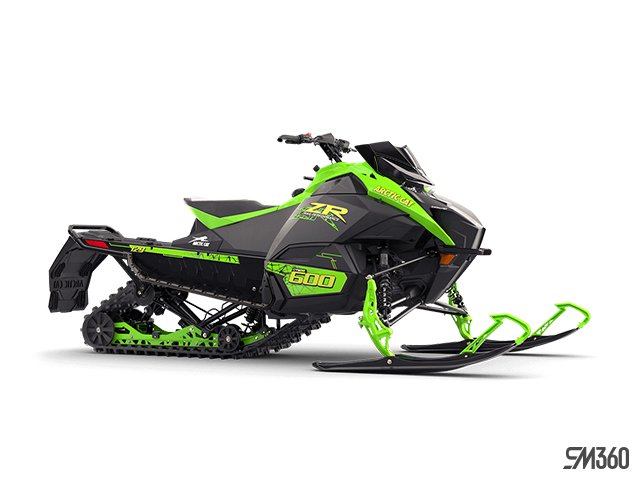

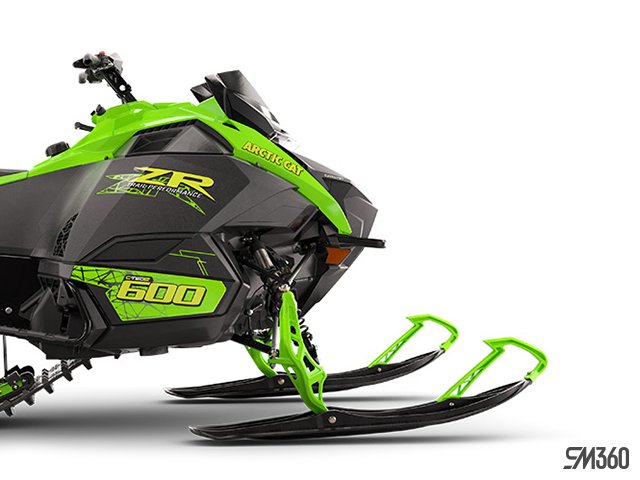

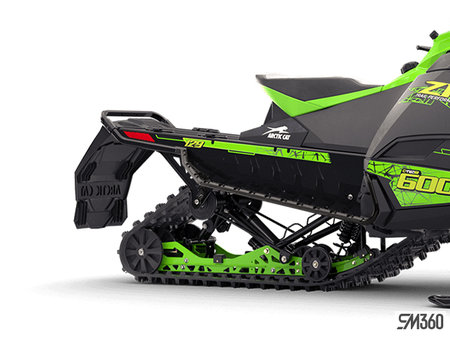

2025 Arctic Cat ZR ZR 600 Sno Pro

Standard

• Engine Type : 600, 2-Stroke
• Displacement : 599cc
• Cooling : Liquid
• Cylinders : 2
• Lubrication : Electronic injection
• Ignition : Digitally Controlled CDI
• Engine Stator Output : 270W @ 3000 RPM
• Fuel Delivery : Dual Stage Injection
• Exhaust : APV with tuned pipe, pipe sensor and stainless steel manifold and muffler
• Fuel Capacity : 10.4 gal.
• Oil System Capacity : 3.0 qt.
• Minimum Octane : 91
• Coolant System Capacity : 5.4 qt.
• Bore x Stroke : 73.8 x 70 mm

Standard

• Overall Chassis Height : 47 in.
• Track Width : 15 in.
• Track Length : 129 in. or 137 in.
• Lug : 1.25 in.
• Pitch : 2.86 in.
• Ski Type/Width : Trail- 6 in.
• Overall Chassis Length :118 in or 126 in
• Overall Chassis Width : 48-49 in.
• Track Type : Ripsaw or Ripsaw II
• Ski Stance : 41.5-42.5 in - Adjustable
• Runner Type : Long Dual Runner 4-Bolt with Carbide

Standard

• Front Suspension : AWS 42
• Sway Bar : Standard
• Front Travel : 8.2 in.
• Rear Travel : 13.5 in.
• Ski Shocks : AC5S
• Rear Suspension : SLIDE-ACTION with 3 Wheel Rear Axle Assembly & Adjustable Torsion Springs
• Front Track Shock : AC5S
• Rear Track Shock : AC5S

Standard

• Handlebars : Hooked
• Lighting : LED
• Seating : Trail
• Heat Exchanger : Front/Long Tunnel
• Starter : Push-Button Electric Start
• Standard Accessories : 12V Outlet, Sport Front Bumper, Integrated Goggle Holder, Hand & Thumb Warmers, Standard Brake Disc, Standard Steering, Tether Switch
• Windshield : 5.5 in Low Height

Standard

• Drive System : AC Trail Belt Drive
• Brakes : Stealth Hydraulic Master Cylinder
• Gearing : 30/58
• Chain Pitch : Belt
• Track Drive Sprocket : 9 tooth, 2.86 pitch, involute
• Reverse : Push-Button Engine
• Drive Clutch : ADAPT
• Driven Clutch : ADAPT
• Clutch Calibration : 0-5,000 ft.

Standard

• Type of Gauge : Sport
• Tachometer : Digital
• Fuel : Digital
• Oil : LCD Icon
• Hours : Digital
• Speedometer : Digital
• Odometer : Digital
• Coolant :Digital Bar Graph
