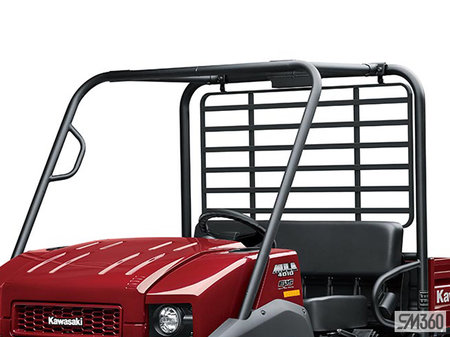

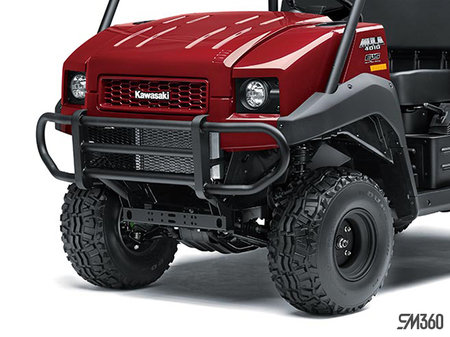

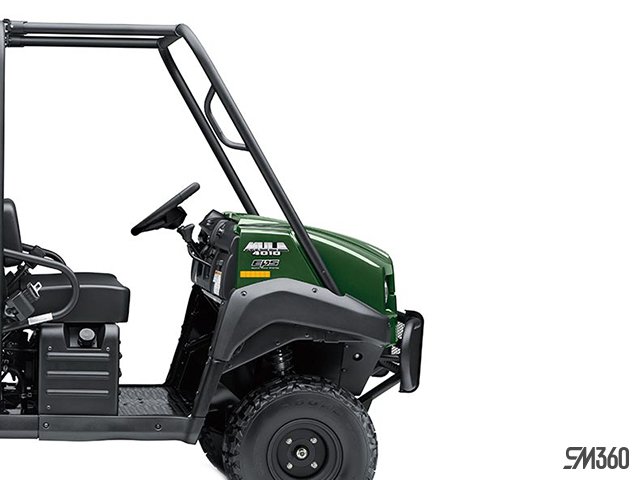

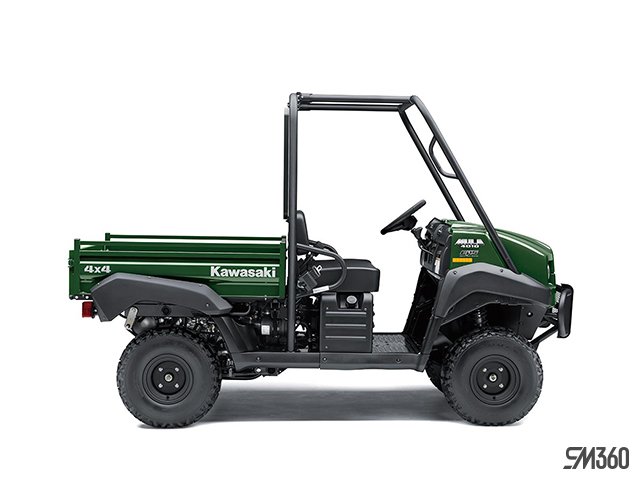

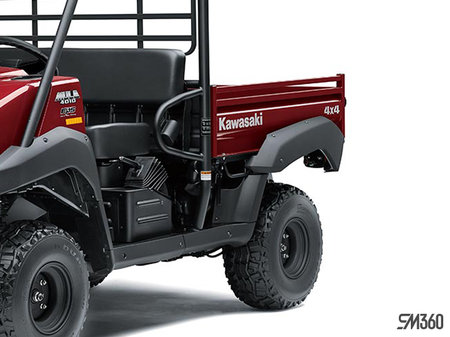

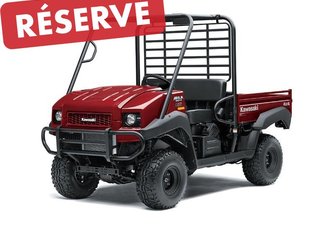

2026 Kawasaki MULE 4010 4X4

Standard

• Starting : Electric
• Lubrication : Forced lubrication, wet sump
• Transmission : 2-speed automatic, forward/reverse
• Final Drive : Gear, selectable 2WD/4WD, dual-mode differential
• Engine : 617cc, liquid-cooled, 4-stroke, OHV 90° V-twin
• Bore x Stroke : 76.0 x 68.0 mm
• Compression Ratio : 10.3:1
• Fuel System : Fuel injection – Mikuni AC34
• Ignition : Magneto & transistor

Standard

• Warranty : 36 months
• Kawasaki Protection Plus : 12 / 24 / 36 / 48 months
• Lighting : 2x halogen headlights
• Seating Capacity : 2
• Dimensions (L x W x H) : 2,965 x 1,575 x 1,925 mm (116.7 x 62.0 x 75.8 in)
• Wheelbase : 1,870 mm (73.6 in)
• Road Clearance : 175 mm (6.9 in)
• Seat Height : 865 mm (34.1 in)
• Curb Weight : 650 kg (1,433 lb)
• Estimated Dry Weight : 620 kg (1,367 lb)
• Fuel Capacity : 24 litres
• Tread (F / R) : 1,160 mm (45.7 in) / 1,180 mm (46.5 in)
• Turning Radius : 3.4 m (11.2 ft)
• Cargo Bed Dimensions (L x W x H) :
• 1,175 x 1,310 x 290 mm (46.3 x 51.6 x 11.4 in)
• Cargo Bed Capacity : 363 kg (800 lb)
• Vehicle Load Capacity : 602 kg (1,327 lb)
• Towing Capacity : 544 kg (1,200 lb)

Standard

• Frame : Ladder type, tubular steel
• Steering : Rack and pinion with Electric Power Steering
• Front Brakes : Dual hydraulic drums
• Rear Brakes : Dual hydraulic drums
• Front Suspension / Wheel Travel : Independent, MacPherson strut / 100 mm (3.9 in)
• Rear Suspension / Wheel Travel : Semi-independent, De Dion axle / 70 mm (2.8 in)
• Rake / Trail : 7.5° / 35 mm
• Steering Angle (L/R) : 47° (IN) / 34° (OUT), 47° (IN) / 34° (OUT)
• Front Tires : 23 x 11.00-10
• Rear Tires : 23 x 11.00-10
• Parking Brake : Mechanical drum
