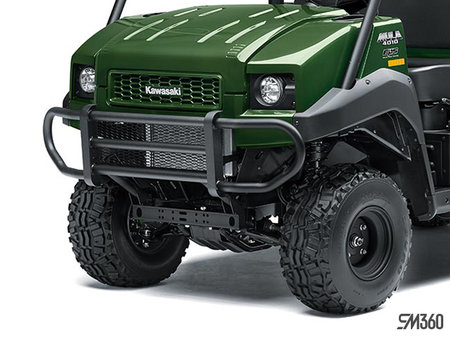

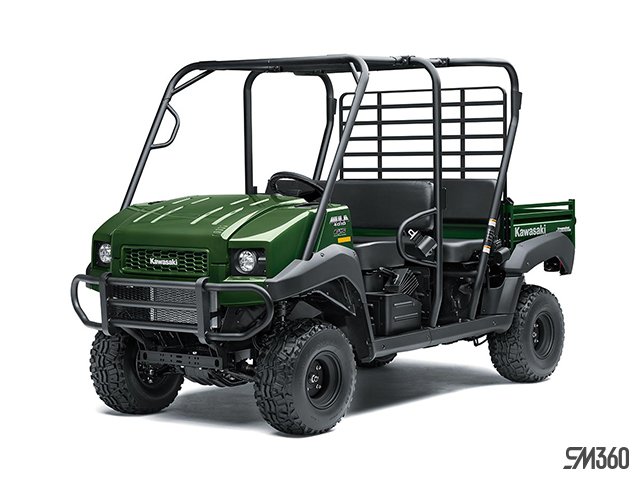

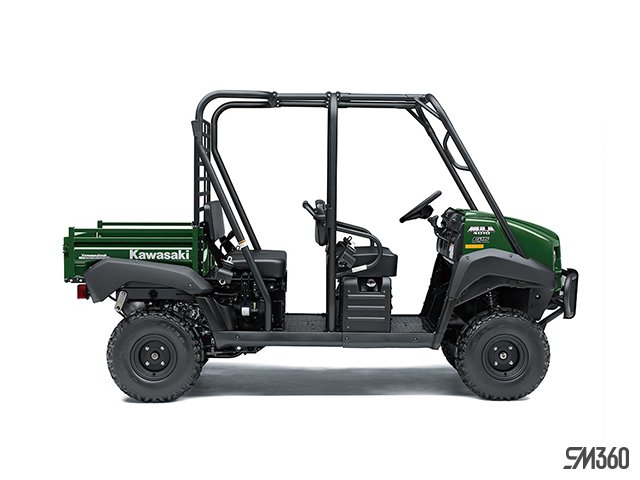

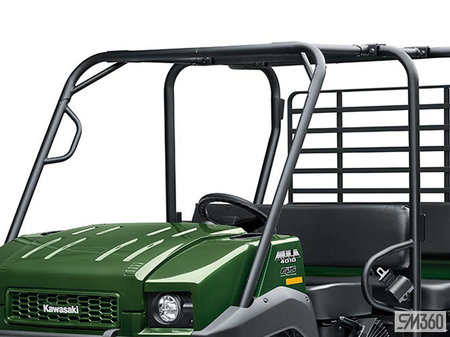

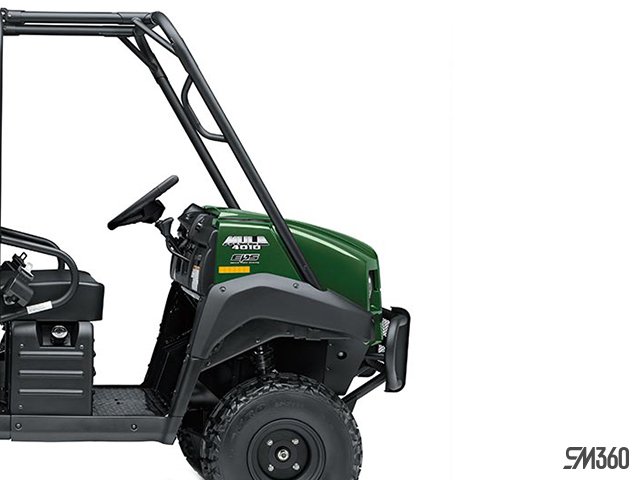

2026 Kawasaki MULE 4010 TRANS4x4

Standard

• Compression Ratio: 10.3:1
• Starting: Electric
• Lubrication: Forced lubrication, wet sump
• Engine: 617cc, liquid-cooled, 4-stroke, OHV 90° V-twin
• Bore x Stroke: 76.0 x 68.0 mm
• Fuel System: Fuel injection: Mikuni AC34
• Ignition: Magneto & transistor
• Transmission: 2-speed automatic, forward/reverse
• Final Drive: Gear, selectable 2WD/4WD, dual-mode differential

Standard

• Lighting: 2x halogen headlights
• Warranty: 36 months
• Kawasaki Protection Plus: 12 / 24 / 36 / 48 months
• Dimensions (LxWxH): 3,265 x 1,485 x 1,925 mm (128.5 x 58.5 x 75.8 in)
• Wheelbase: 2,165 mm (85.2 in)
• Road Clearance: 180 mm (7.1 in)
• Seat Height: 870 mm (34.3 in) front, 885 mm (34.8 in) rear
• Curb Weight: 720 kg (1,587 lb)
• Estimated Dry Weight: 690 kg (1,521 lb)
• Fuel Capacity: 24 litres
• Tread (F/R): 1,160 mm (45.7 in) / 1,180 mm (46.5 in)
• Turning Radius: 3.9 m (12.8 ft)
• Cargo Bed Dimensions (LxWxH): 4-Person Mode 770 x 1,210 x 285 mm (30.3 x 47.6 x 11.2 in)
• Cargo Bed Dimensions (LxWxH): 2-Person Mode 1,280 x 1,210 x 285 mm (50.4 x 47.6 x 11.2 in)
• Cargo Bed Capacity: 4-Person Mode 182 kg (401 lb)
• Cargo Bed Capacity: 2-Person Mode 363 kg (800 lb)
• Seating Capacity: 2 or 4
• Vehicle Load Capacity: 603 kg (1,330 lb)
• Towing Capacity: 544 kg (1,200 lb)

Standard

• Frame: Ladder type, tubular steel
• Front Suspension / Wheel Travel: Independent, MacPherson strut / 100 mm (3.9 in)
• Rear Suspension / Wheel Travel: Semi-independent, De Dion axle / 70 mm (2.8 in)
• Steering: Rack and pinion with Electric Power Steering
• Rake / Trail: 7.5° / 35 mm
• Steering Angle (L/R): 47° (IN) / 34° (OUT), 47° (IN) / 34° (OUT)
• Front Tires: 23 x 11.00-10
• Rear Tires: 23 x 11.00-10
• Front Brakes: Dual hydraulic drums
• Rear Brakes: Dual hydraulic drums
• Parking Brake: Mechanical drum
