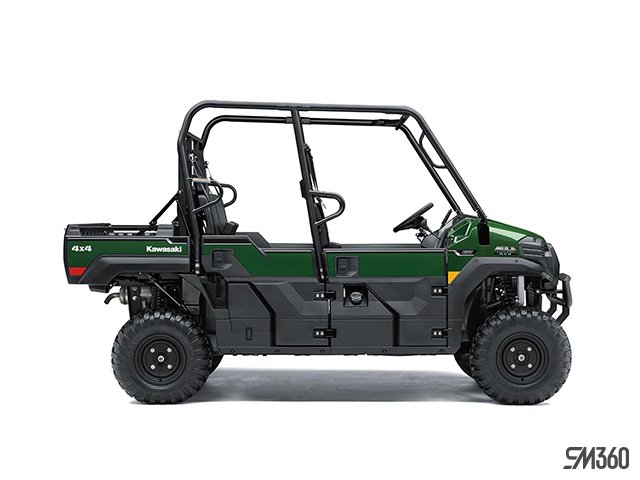

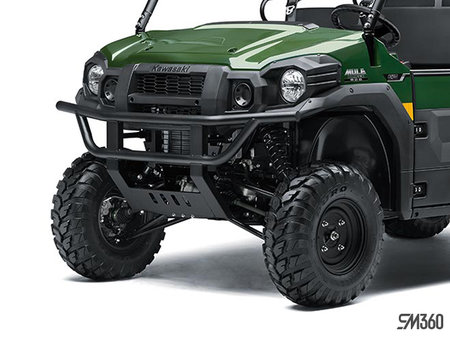

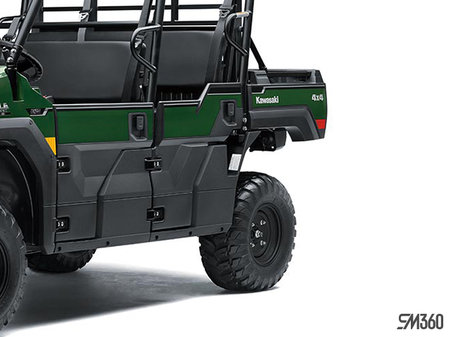

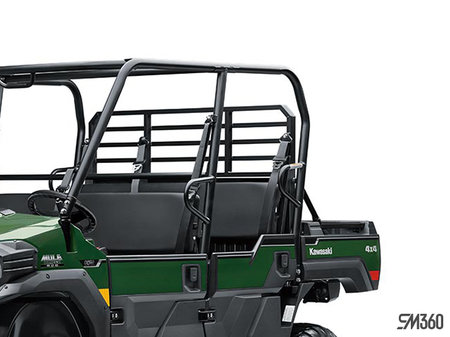

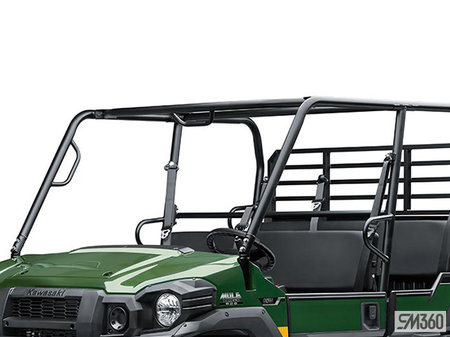

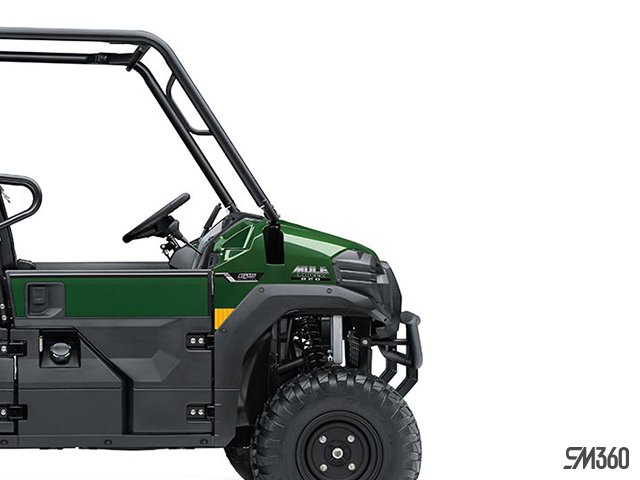

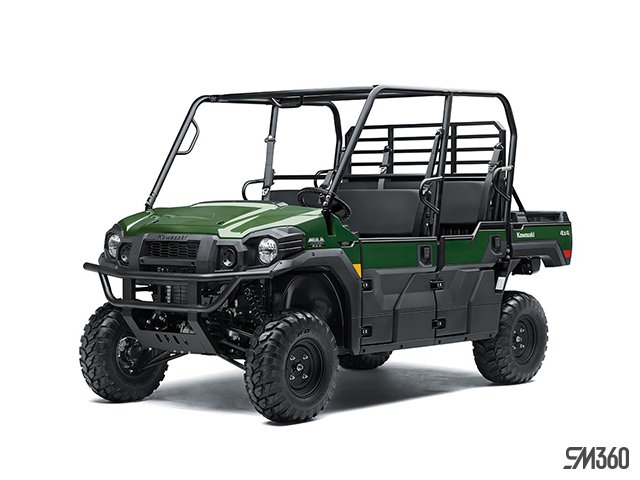

2026 Kawasaki MULE PRO-FXT 820

Standard

• Engine : 812cc, liquid-cooled, 4-stroke, DOHC 4-valve-per-cylinder, in-line 3-cylinder
• Bore x Stroke : 72.0 x 66.5 mm
• Compression Ratio : 9.5:1
• Fuel System : Fuel injection, ø34 mm x 1
• Ignition : Battery & coil
• Starting : Electric
• Lubrication : Forced lubrication, wet sump
• Transmission : Dual range (high/low) CVT with reverse
• Final Drive : 2WD/4WD, shaft, dual-mode differential

Standard

• Wheelbase : 2,345 mm (92.3 in)
• Fuel Capacity : 30 litres
• Turning Radius : 4.8 m (15.7 ft)
• Vehicle Load Capacity : 717 kg (1,581 lb)
• Towing Capacity : 907 kg (2,000 lb)
• Lighting : 2x halogen
• Instrumentation : Multi-function display includes driving mode (2WD/4WD) indicator, digital speedometer, digital fuel gauge, clock, odometer, dual trip meters, hour meter, and various warning lamps
• Warranty : 36 months
• Kawasaki Protection Plus : 12 / 24 / 36 / 48 months
• Cargo Bed Dimensions (LxWxH) – 6-Person Mode : 560 x 1,363 x 279 mm (22.0 x 53.7 x 11.0 in)
• Cargo Bed Dimensions (LxWxH) – 3-Person Mode : 1,085 x 1,363 x 279 mm (42.7 x 53.7 x 11.0 in)
• Cargo Bed Capacity – 6-Person Mode : 158 kg (348 lb)
• Cargo Bed Capacity – 3-Person Mode : 453 kg (1,000 lb)
• Seating Capacity : 3 or 6
• Dimensions (LxWxH) : 3,385 x 1,625 x 1,970 mm (133.3 x 64.0 x 77.6 in)
• Road Clearance : 260 mm (10.2 in)
• Seat Height : 880 mm (34.6 in) front, 965 mm (38.0 in) rear
• Curb Weight* : 884 kg (1,949 lb)
• Estimated Dry Weight** : 844 kg (1,861 lb)
• Tread (F/R) : 1,389 mm (54.7 in) / 1,321 mm (52.0 in)

Standard

• Frame : Ladder type, tubular steel
• Front Suspension / Wheel Travel : Double wishbone / 222 mm (8.7 in)
• Rear Suspension / Wheel Travel : Double wishbone / 217 mm (8.5 in) left, 220 mm (8.7 in) right
• Steering : Rack and pinion with Electric Power Steering
• Rake / Trail : 4.4° / –
• Steering Angle (L/R) : 40° (IN) / 31° (OUT), 40° (IN) / 31° (OUT)
• Front Tires : 26 x 9.00R12 4PR
• Rear Tires : 26 x 11.00R12 4PR
• Front Brakes : Dual ø212 mm discs with two-piston calipers
• Rear Brakes : Dual ø212 mm discs with single-piston calipers
• Parking Brake : Dual discs (mechanical)
