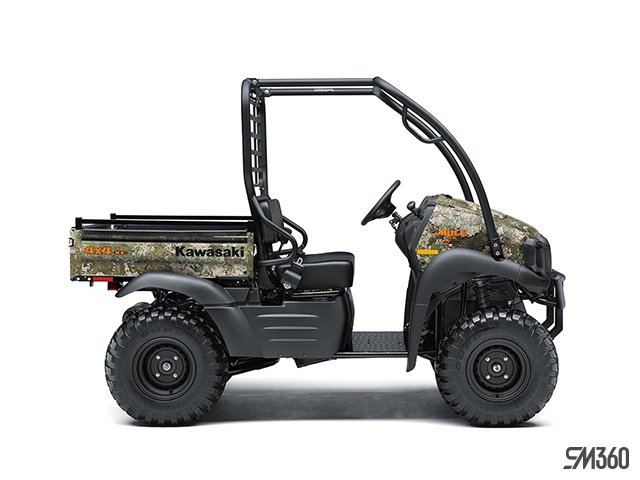

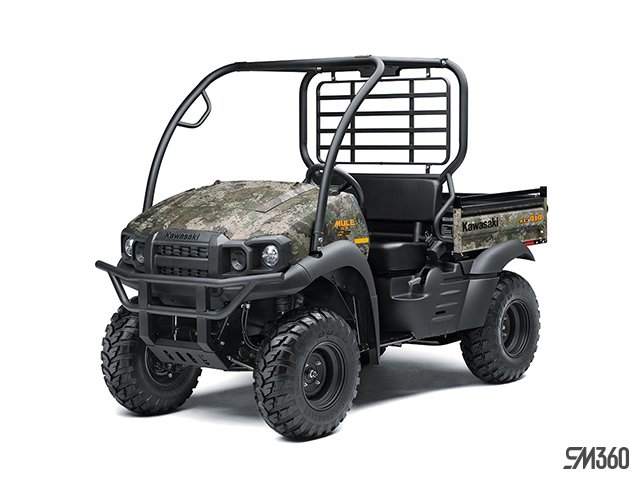

2026 Kawasaki MULE SX 4x4 XC CAMO

Standard

• Ignition : Battery & coil
• Starting : Electric
• Lubrication : Forced lubrication, wet sump
• Engine : 401cc, air-cooled, 4-stroke, OHV single
• Bore x Stroke : 82.0 x 76.0 mm
• Compression Ratio : 8.6:1
• Fuel System : Fuel injection, ø23 mm x 1
• Transmission : 2-speed automatic, forward/reverse
• Final Drive : Gear, selectable 2WD/4WD, dual-mode differential

Standard

• Warranty : 36 months
• Kawasaki Protection Plus : 12 / 24 / 36 / 48 months
• Wheelbase : 1,780 mm (70.1 in)
• Road Clearance : 190 mm (7.5 in)
• Seat Height : 840 mm (33.1 in)
• Curb Weight : 498 kg (1,098 lb)
• Estimated Dry Weight : 480 kg (1,058 lb)
• Fuel Capacity : 16 litres
• Tread (F/R) : 1,080 mm (42.5 in) / 1,050 mm (41.3 in)
• Turning Radius : 3.6 m (11.8 ft)
• Cargo Bed Dimensions (LxWxH) : 905 x 1,040 x 245 mm (35.6 x 40.9 x 9.6 in)
• Cargo Bed Capacity : 181 kg (400 lb)
• Seating Capacity : 2
• Vehicle Load Capacity : 401 kg (884 lb)
• Towing Capacity : 500 kg (1,100 lb)
• Instrumentation : Digital fuel gauge, hour meter
• Dimensions (LxWxH) : 2,710 x 1,335 x 1,865 mm (106.7 x 52.6 x 73.4 in)
• Lighting : 2x LED headlights

Standard

• Frame : Ladder type, tubular steel
• Front Suspension / Wheel Travel : Independent, MacPherson strut / 78 mm (3.1 in)
• Rear Suspension / Wheel Travel : Unit swing axle / 79 mm (3.1 in)
• Steering : Rack and pinion
• Rake / Trail : 9° / 50 mm
• Steering Angle (L/R) : 41° (IN) / 35° (OUT), 41° (IN) / 35° (OUT)
• Front Tires : 26 x 9.00-12
• Rear Tires : 26 x 9.00-12
• Front Brakes : Dual hydraulic drums
• Rear Brakes : Dual hydraulic drums
• Parking Brake : Mechanical, on rear wheels
