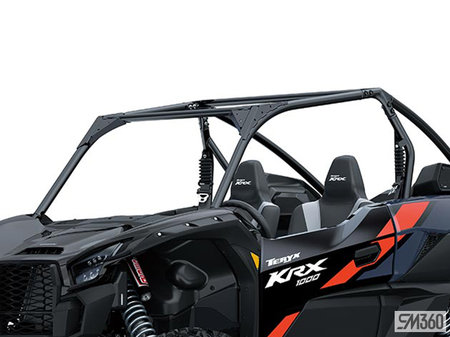

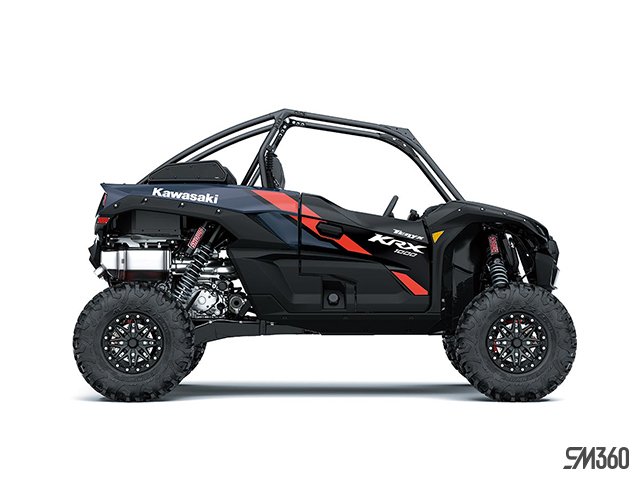

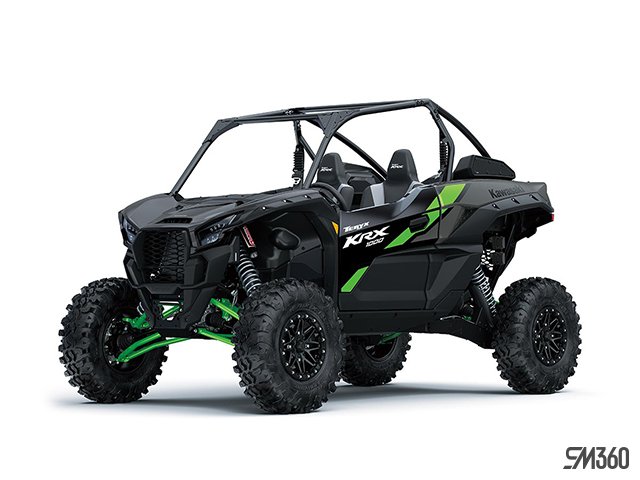

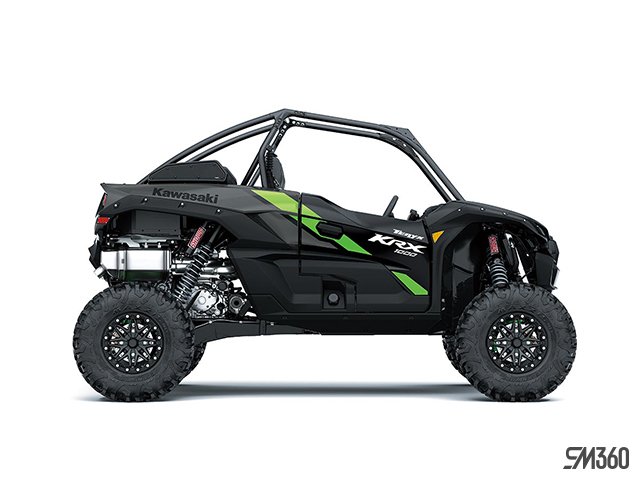

2026 Kawasaki TERYX KRX 1000

Standard

• Engine: 999cc, liquid-cooled, 4-stroke, DOHC 4-valve-per-cylinder parallel twin
• Bore x Stroke: 92.0 x 75.1 mm
• Compression Ratio: 11.5:1
• Fuel System: Fuel injection: ø50 mm x 2
• Ignition: Digital
• Starting: Electric
• Lubrication: Forced lubrication, wet sump
• Transmission: Dual-range (high/low) CVT with centrifugal clutch and reverse
• Final Drive: 2WD/4WD, shaft

Standard

• Dimensions (LxWxH) 3,305 x 1,730 x 1,895 mm (130.1 x 68.1 x 74.6 in)
• Wheelbase 2,510 mm (98.8 in)
• Road Clearance 355/370 mm (standard/max preload) (14.0/14.6 in (standard/max preload))
• Seat Height 795 mm (31.3 in)
• Curb Weight 859 kg (1,894 lb)
• Estimated Dry Weight 814 kg (1,797 lb)
• Fuel Capacity 40 litres
• Tread (F/R) 1,505 mm (59.3 in) / 1,510 mm (59.4 in)
• Turning Radius 6.2 m (20.3 ft)
• Cargo Bed Dimensions (LxWxH) 370 x 840 x 230 mm (14.6 x 33.1 x 9.1 in)
• Cargo Bed Capacity 159 kg (351 lb)
• Seating Capacity 2
• Vehicle Load Capacity 354 kg (780 lb)
• Lighting 2x LED headlights
• Instrumentation Multi-function digital meter with bar-style tachometer (2 display options), digital speedometer, bar-style fuel gauge, gear indicator (L, H, N, R), Power Mode, driving mode (2WD/4WD/4WD+Diff Lock) indicator, Economical Riding Indicator, clock, odometer, dual trip meters, hour meter, water temperature, digital battery gauge, bar-style CVT temperature gauge, seatbelt warning lamp, oil warning lamp, engine check lamp, water temperature warning lamp, neutral indicator lamp, reverse indicator lamp, parking indicator lamp, EPS warning lamp, CVT belt warning lamp, low-battery warning lamp
• Warranty 6 months
• Kawasaki Protection Plus 12 / 24 / 36 / 48 months

Standard

• Chassis Management Technology: ERGO-FIT
• Engine Management Technology: Economical Riding Indicator, Power Modes

Standard

• Frame: Ladder type, tubular steel
• Steering: Rack and pinion with Electric Power Steering

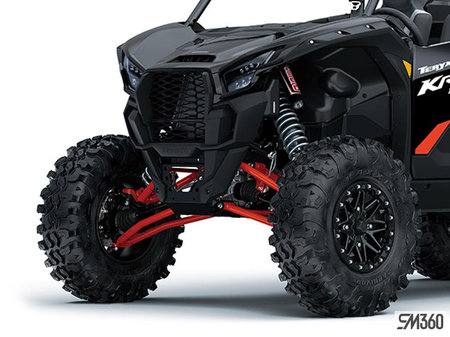

• Front Suspension / Wheel Travel: Double wishbone, SHOWA 2.5 piggyback shocks with adjustable preload and adjustable compression damping / 472 mm (18.6 in)
• Rear Suspension / Wheel Travel: 4-link trailing arm rear suspension, SHOWA 2.5 piggyback shocks with adjustable preload and adjustable compression damping / 536 mm (21.1 in)
• Rake / Trail: 10.0° / 65 mm
• Steering Angle (L/R): 34° (IN) / 29° (OUT), 34° (IN) / 29° (OUT)

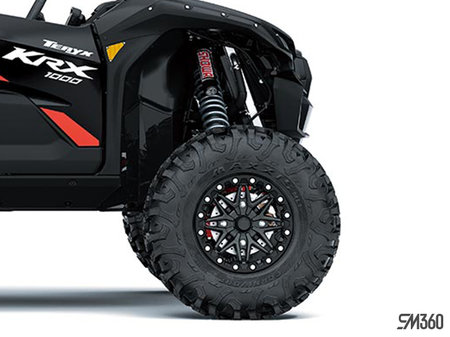

• Front Tires: MAXXIS Carnivore 31 x 10.00R15 8PR, with bead-lock wheels
• Rear Tires: MAXXIS Carnivore 31 x 10.00R15 8PR, with bead-lock wheels
• Front Brakes: Dual ø258 mm discs with twin-piston (ø32 mm x2) calipers
• Rear Brakes: Dual ø258 mm discs with single-piston (ø38 mm x1) calipers
• Parking Brake: Auto-adjust mechanical disc
