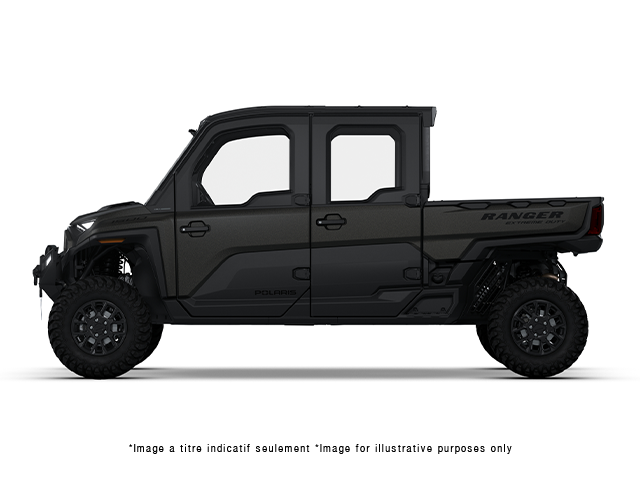

2026 Ranger Crew XD 1500 NorthStar Texas Edition

Standard

• Parking Brake - Park In-Transmission
• Front/Rear Brakes - Foot activated and power assisted, 4 wheel hydraulic disc with dual-bore front and rear calipers

Standard

• Cooling : Liquid
• Cylinders Displacement : 1498 cc
• Drive System Type : Selectable on-demand all-wheel drive, AWD/2WD/Turf/Ultra Turf, Drive modes: Comfort, Standard, Sport, Tow/Haul
• Driveline Features : Drive mode-specific engine braking, hill assist, and creep in drive and reverse
• Engine Type : 4-stroke triple cylinder DOHC
• Fuel System : Electronic fuel injection
• Horsepower : 110
• Transmission/Final Drive : STEELDRIVE automatic transmission: D/R/P

Standard

• Curb Weight :3413 lbs (1548 kg)
• Estimated Dry Weight : 3315 lbs (1503 kg)
• Fuel Capacity : 13.6 gal (51.5 L)
• Towing Capacity : 3,500 lbs. (1588 kg)
• Hitch Type : Standard 2" (5 cm) receiver
• Overall Vehicle Size (L x W x H) : 164 x 65 x 78" (416.5 x 165 x 198 cm)
• Payload Capacity : 1,420 lbs. (644 kg)
• Person Capacity : 6
• Turning Radius : 19.4' (6 m)
• Wheelbase : 127" (322.6 cm)
• Ground Clearance: 16" (40.6 cm)
• Box Capacity: 1,300 lbs. (590 kg)

Standard

• Tire Ply Rating: 8-ply
• Front Tires:32 x 10-15; Pro Armor Trekker
• Rear Tires :32 x 10-15; Pro Armor Trekker
• Wheels: 15" beadlock

Standard

• Connected Vehicle Services : RIDE COMMAND+
• Audio System: JBL Trail Pro 4200 audio
• Touch Screen Display : 7" Display, Powered by RIDE COMMAND
• Rear Camera : Factory rear camera
• Steering : Tilt & telescoping adjustment
• Electronic Power Steering : High-output EPS
• Cab Components : Factory-installed cab system with powered doors, roof, fixed glass windshield, glass rear panel, rearview mirror, windshield wiper/washer, and sound insulation materials
• Heat and/or Air Conditioning : Factory-installed heat, AC, defrost, recirculation with 5 different airflow settings
• Speed Limiting :Speed limiting controlled in RIDE COMMAND
• Lighting : LED headlights with LED taillights, LED rear work light, LED dome light, door puddle lighting, front LED auxiliary lights, interior accent lighting, lighting modes: low, high, accent, blackout. Blackout mode switches off the headlights and dims interior lighting
• Electrical System : 140-amp charging system, Polaris PULSE electrical system (3-position hood and 3-position roof), USB charger, Trickle Charger, 12-volt accessory outlet, battery trickle-charging port
• Winch : Polaris Pro HD 6,000 LB Winch with synthetic rope, Auto Stop, wireless remote and Rapid Rope Recovery
• Vehicle Protection :Large steel bumper, full-coverage skid plate, bumper D-rings, and top bar
• Door Type : Powered window doors—front and rear
• Cargo System : Electronic lift dump box with Lock & Ride MAX accessory integration
• Warranty : 2-year limited warranty
• Immersive Sound System: Exclusive with the Texas Edition, integrated JBL Trail Pro 4200 audio speakers deliver precise audio clarity and premium surround sound. Run AM/FM radio or connect to Bluetooth via the 7" Display, powered by RIDE COMMAND.
• Premium Seating:New embroidered seating has added bolstering for more comfort. A new center flip-down seat transforms into an arm rest with added cupholders for more convenience.

Standard

• Front Suspension: Dual A-arm 12" (30.5 cm) travel
• Rear Suspension: Dual arched A-arm, IRS 12" (30.5 cm) travel
