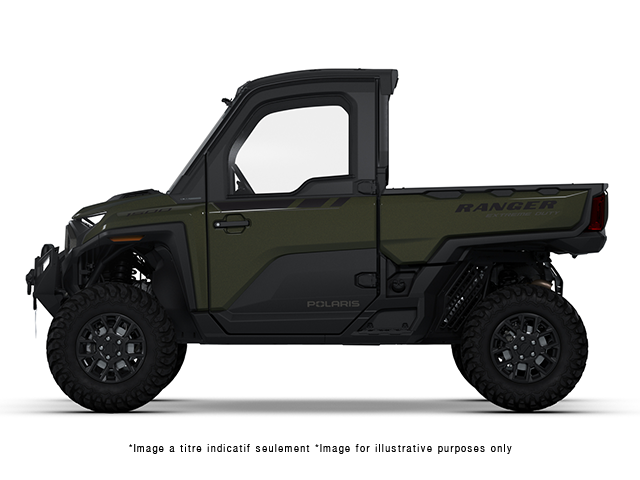

2026 Ranger XD 1500 NorthStar Mountaineer Edition

Standard

• Parking Brake - Park In-Transmission
• Front/Rear Brakes - Foot activated and power assisted, 4 wheel hydraulic disc with dual-bore front and rear calipers

Standard

• Cooling - Liquid
• Cylinders Displacement - 1498cc
• Horsepower - 110 HP
• Fuel System/Battery - Electronic Fuel Injection
• Transmission/Final Drive -STEELDRIVE Automatic Transmission: D/R/P
• Engine Type - 4-Stroke DOHC Triple Cylinder
• Drive System Type - Selectable on-demand all-wheel drive, AWD/2WD/Turf/Ultra Turf,
• Drive modes: Comfort, Standard, Sport, Tow/Haul
• Fuel System: Electronic fuel injection
• Horsepower: 110
• Fuel Capacity - 13.6 gal (51.5 L)
• Increased Low-End Torque: Purpose built for effortless ascent on high altitude terrain with more low-end torque and smooth throttle control

Standard

• Bed Box Dimensions: 43.4 x 56 x 13.4" (110.2 x 142.2 x 34 cm)
• Box Capacity: 1,500 lbs. (680 kg)
• Curb Weight: 2922 lbs (1325 kg)
• Estimated Dry Weight: 2790 lbs (1265 kg)
• Fuel Capacity: 13.6 gal (51.5 L)
• Ground Clearance: 15" (38 cm)
• Towing Capacity: 3,500 lbs. (1588 kg)
• Hitch Type: Standard 2" (5 cm) receiver
• Overall Vehicle Size(L x W x H): 137 x 65 x 78" (348 x 165 x 198 cm)
• Payload Capacity: 1710 lbs (775 kg)
• Person Capacity: 3
• Turning Radius: 15.1' (4.6 m)
• Wheelbase: 95" (241.3 cm)

Standard

• Tire Ply Rating: 8-ply
• Front Tires: 30 x 10-15; KENDA CROSS TRAIL
• Rear Tires: 30 x 11-15; KENDA CROSS TRAIL
• Wheels: 15" aluminum

Standard

• Audio System: JBL Trail Pro 2000 audio
• Connected Vehicle Services : RIDE COMMAND+
• Touch Screen Display: 7" Display, Powered by RIDE COMMAND
• Rear Camera: Factory rear camera
• Seat Type:3-person, superior contoured, bolstered, and heated bench seat with 3-point harness, adjustable driver seat, and flip-down arm rest
• Steering: Tilt & telescoping adjustment
• Electronic Power Steering: High-output EPS
• Cab Components: Factory-installed cab system with tinted powered doors, roof, tip-out glass windshield, tinted glass rear panel, rearview mirror, windshield wiper/washer, and sound insulation materials
• Heat and/or Air Conditioning: Factory-installed heat, AC, defrost, recirculation with 5 different airflow settings
• Speed Limiting: Speed limiting controlled in RIDE COMMAND
• Lighting: LED headlights with LED taillights, LED dome light, door puddle lighting, interior accent lighting, lighting modes: low, high, accent, blackout. Blackout mode switches off the headlights and dims interior lighting
• Electrical System: 140-amp charging system, Polaris PULSE electrical system (3-position hood and 3-position roof), USB charger, Trickle Charger, 12-volt accessory outlet, battery trickle-charging port
• Winch: Polaris Pro HD 6,000 LB Winch with synthetic rope, Auto Stop, wireless remote and Rapid Rope Recovery
• Vehicle Protection: Large steel bumper, full-coverage skid plate, bumper D-rings, and top bar
• Cargo System: Electronic lift dump box with Lock & Ride MAX accessory integration
• Warranty: 2-year limited warranty
• Door Type: signature badging and tinted windows.

Standard

• Front Suspension: Dual A-arm 12" (30.5 cm) travel
• Rear Suspension: Dual arched A-arm, IRS 12" (30.5 cm) travel
