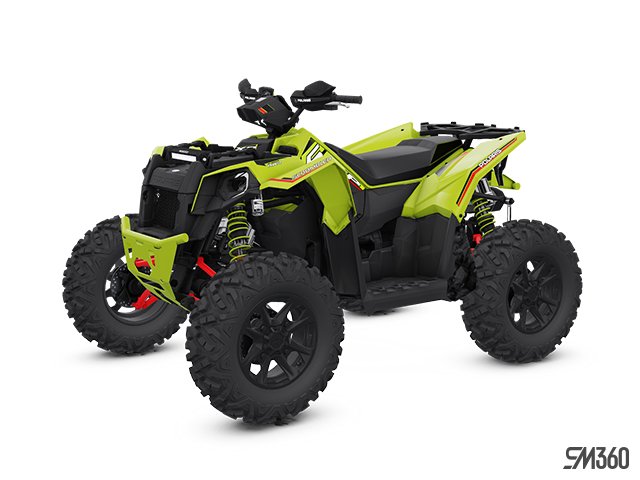

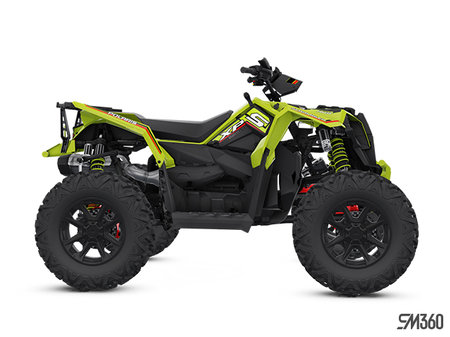

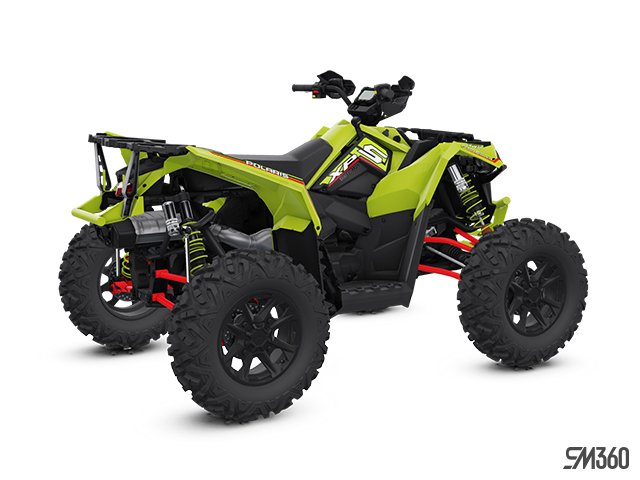

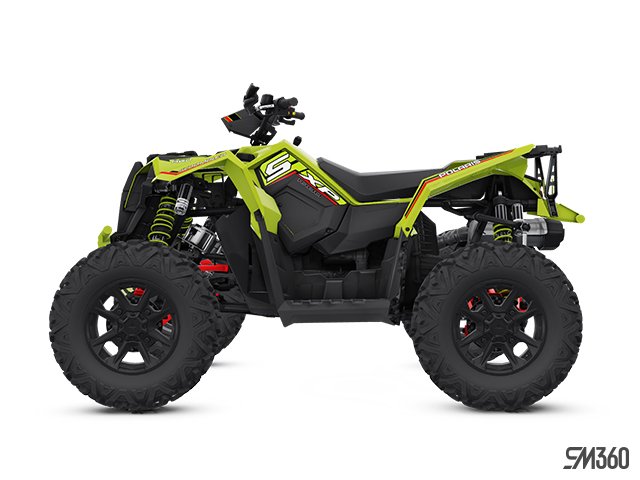

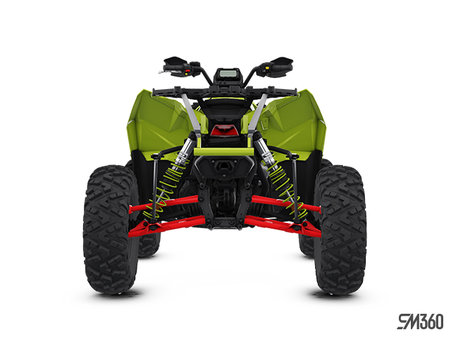

2025 Sportsman Scrambler XP 1000 S

Standard

• Parking Brake - Park In-Transmission / Lockable Hand Lever
• Brake System Type - Single Lever 4-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake
• Engine Braking System (EBS)

Standard

• Cooling - Liquid
• Fuel Capacity - 5.25 gal (19.9 L)
• Cylinders Displacement - 2 / 952 cc
• Engine Type - ProStar 4-Stroke SOHC Twin Cylinder
• Horsepower - 89 HP
• Drive System Type - One Touch On-Demand AWD/2WD
• Fuel System/Battery - Electronic Fuel Injection / 400 CCA
• Transmission/Final Drive - Automatic PVT P/R/N/L/H In-line Shifting

Standard

• Payload Capacity - 290 lb (132 kg)
• Seat Height (Laden) - 37 in (94 cm)
• Ground Clearance - 14.5 in (36.8 cm)
• Overall Vehicle Size (L x W x H) - 82.5 x 55 x 49.5 in (209.5 x 140 x 125.7 cm)
• Wheelbase - 57.4 in (145.8 cm)
• Front/Rear Rack - 25 lb / 50 lb (11.3 kg / 22.7 kg)
• Dry Weight - 899 lbs (407 kg)

Standard

• Rear Tires - 27 x 9 Duro PowerGrip II
• Front Tires - 27 x 9 Duro PowerGrip II
• Wheels - 12 in Aluminum
• Electronic Power Steering - Multi Select EPS

Standard

• Instrumentation - All Digital Gauge, Speedometer, Odometer, Tachometer, Two Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, AWD Indicator, Volt Meter, Coolant Temperature, Hi-Temp Light, Clock
• Cargo System - Lock & Ride, 1 Gal (4 L) Rear Storage
• Lighting - LED High/Low Beam Headlights, Single LED Brakelight/Taillight
• Other Standard Features - Pro Armor Light Bar, Front Bumper, Walker Evans 3-Way Adjustable Shocks, Painted Plastics, Painted Springs, 12 Volt Power Plug, Battery Charger, Pre-Wired for Winch and Hand/Thumb Warmers

Standard

• Rear Suspension - Sealed Dual A-Arm Rolled IRS, 14 in (35.6 cm) Travel
• Front Suspension - Sealed High Clearance Arched Dual A-Arm 12.5 in (29.2 cm) Travel
